Pneumatic Crimper Plier,Knoweasy Pneumatic Air Powered Wire Terminal Crimping Machine Up to 16mm2

$224.99 $500.00 You Save 55% ($275.01)

The Pneumatic Crimping machine is driven by dual-action normal cylinder,which has advantages of high efficiency and quality in crimping force and speed
Output force: 13.5KN;Applicable air pressure: 0.4-1Mpa
Range of Application:Non-insulated terminals 0.5-16.0mm2;Pre-insulated terminals 0.5-6.0mm2;Tube-shaped terminal 0.5-50.0mm2

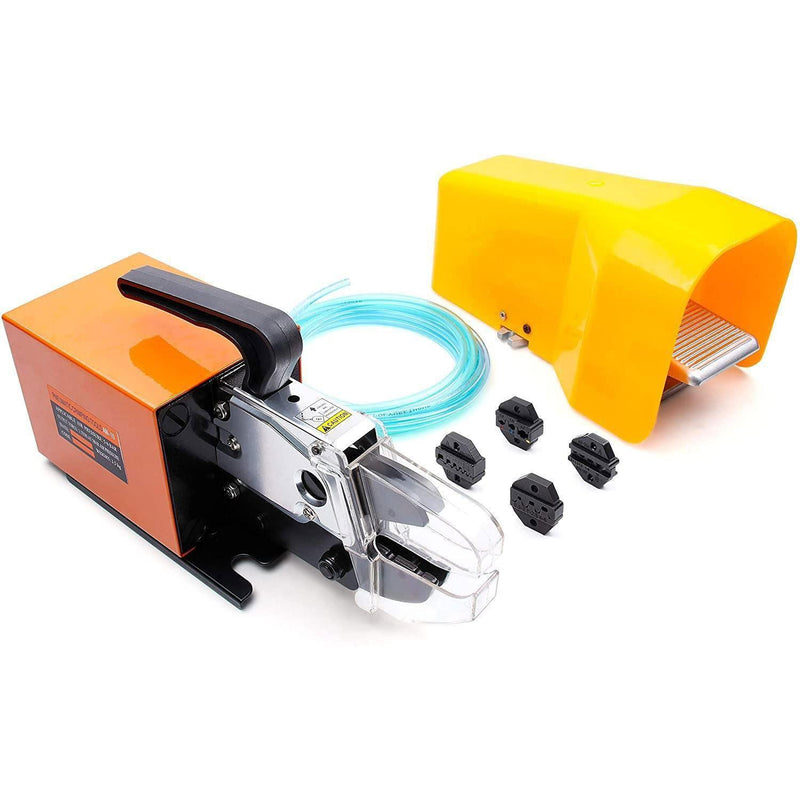

Package including:1pc x Wire Crimping machine,3pc x DIE set,1pc x Foot valve,2 x Trachea[Note:Need work with one air source(not include)]
Default Crimping Die sets :A30J,A10A,A10WF,A03BC.If you want to change the other Models(see pictures),please contact us.

Description
Reviews

Description

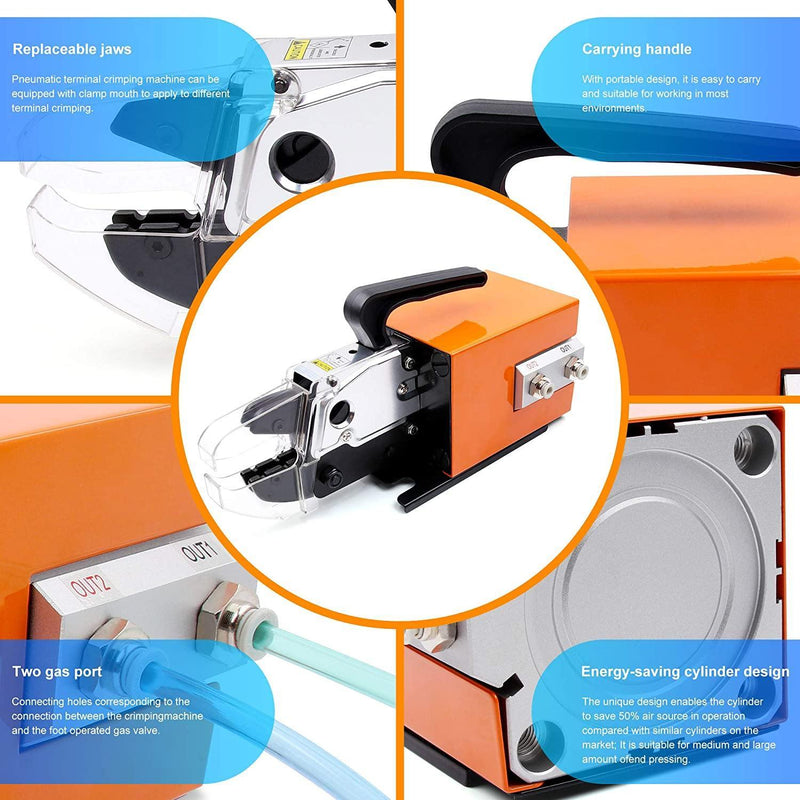

Features:

Fit for crimping many kinds of terminals
Driven by dual-action normal cylinder
High efficiency and quality in crimping force and speed
4 sets of dies for free
Able to process terminals with large sizes

The crimping machine can be free from the boring and repeated manual crimping mode.
The crimping speed is the manual crimping machine,which can be free from the boring and repeated manual crimping mode.
The crimping speed is 10 times of the manual crimping pliers, which has a greater cost advantage.
It is suitable for the crimping of welded or tubular electrical connection ends according to international standards.
The precise die is made of high-quality alloy steel by special heat treatment process.
The die can be changed quickly and crimped quickly.The fastness after crimping is reliable.

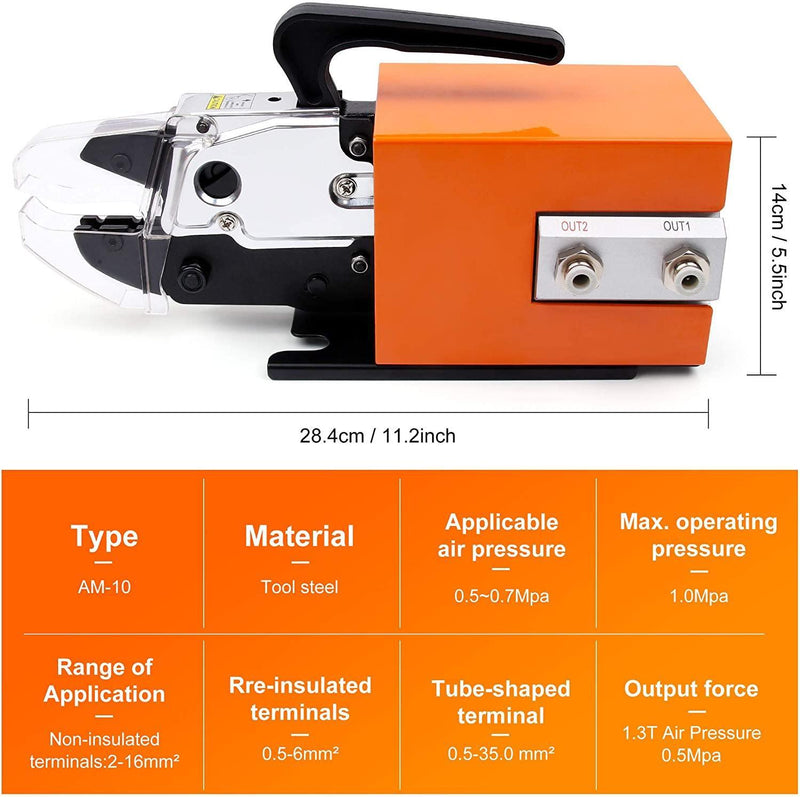

Specification:

Air Pressure: 0.4-1Mpa
OutPut Force: 13.5KN
Driven By: Dual-action
Normal Cylinder
Weight: 13.22lb
External dimension: 266 mm x 142 mm x 117 mm
Gross Weight: 17 lb (7.5 kg)

Design of Super Energy Saving Cylinder

Pneumatic Wire Crimping Tool makes crimping 20-8 AWG wire as simple as pressing a hand or foot switch lt helps reduce operator fatigue. Include the fully-adjustable bench mount assembly with foot switch, and you are free to concentrate on aligning the wire and terminal, to crimp faster with fewer mistakes.

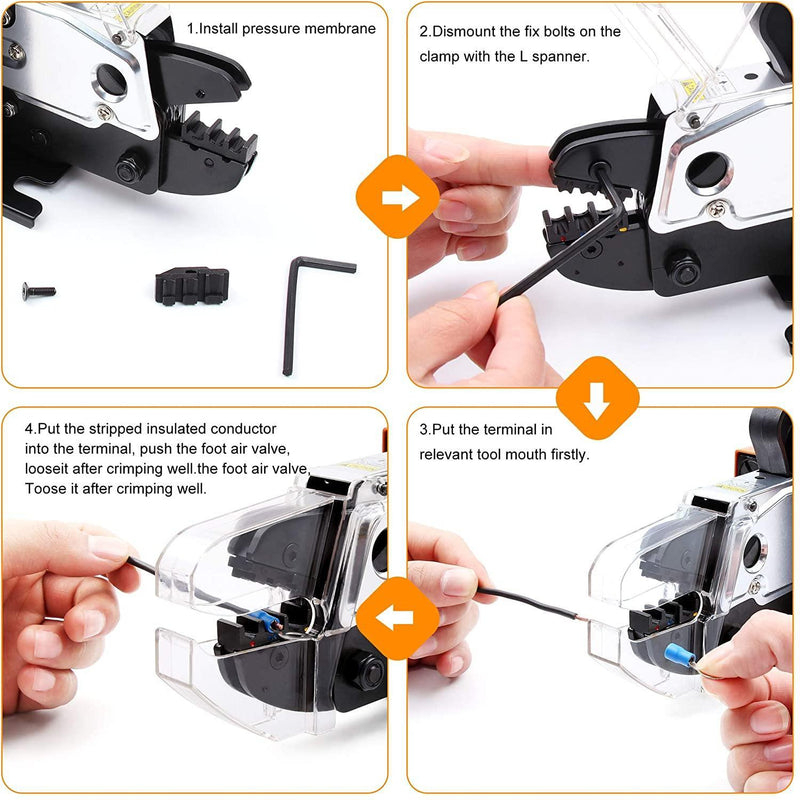

Step1

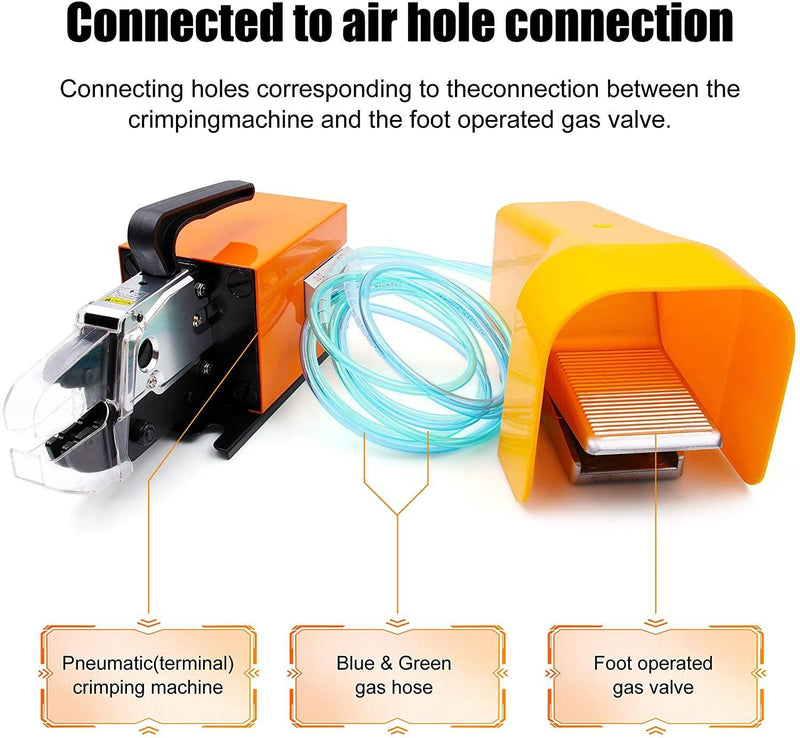

Connect pipes among AM-10,foot pedal and air compressor.

Step2

Strip the wire to proper length and insert the wire into connectors.

Step3

lnsert with stripped wires into terminals.

Step4

Strip the wire to proper length and insert the wire into connectors.

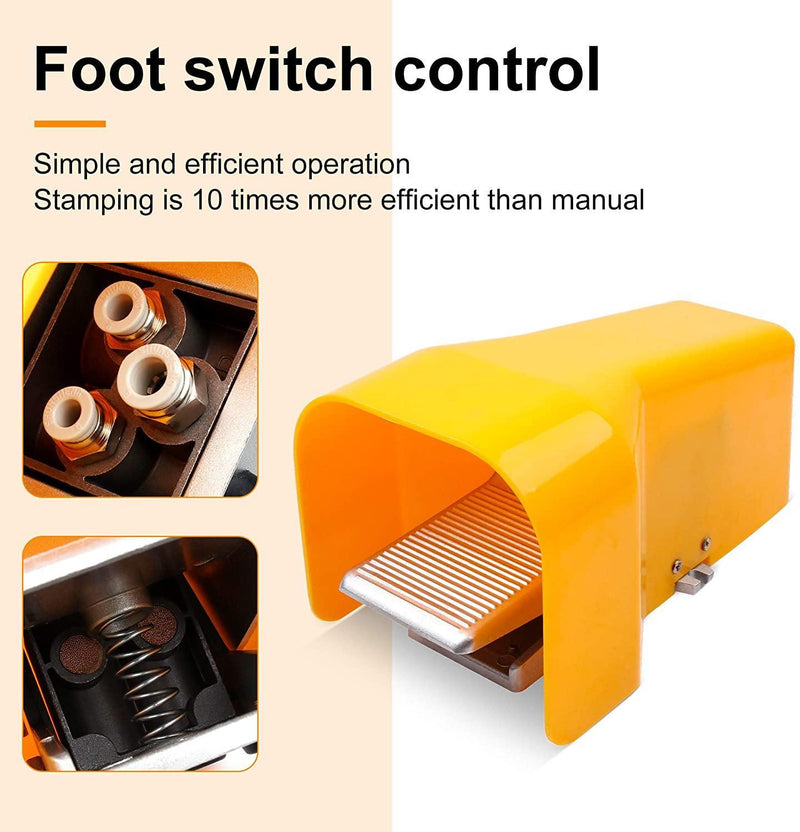

You need a foot switch control of good quality

Switch in medical device stamping equipment. Welding equipment. Widely used in knitting and printing machinery to step on, a period of travel, foot stop switch is actually a built-in travel switch, when the foot clam to the monk, the switch is executed
